WD 800041 800067 800069 800077 Firmware Unlock PCBs

Description

This is one special customized Promotion Package for WD 800041 800067 800069 800077 Data Recovery Unlock PCBs .

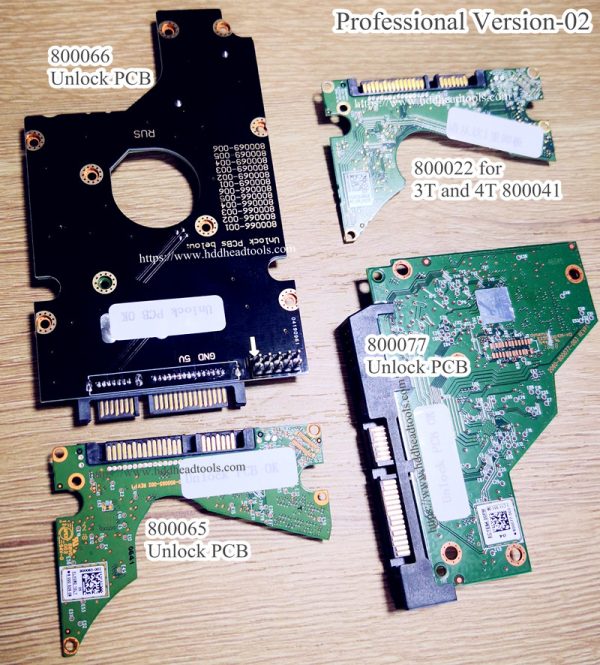

This promotion package contains the following four PCBs:

800022-SATA PCB: This PCB is customized PCB compatible with 800041 USB PCB, both 3TB and 4TB 800041 USB PCBs are compatible with this SATA PCB. Please note: This PCB doesn’t have chip lock but it has SED lock, after users swap the 800041 USB PCB with this SATA PCB, users need to short connect tv 9 and tv 10 to read the ROM and fw modules or users can separate the PCB head contacts to continue fw operation.

800065-SATA PCB: This PCB is one unlock data recovery PCB for USB PCB 800067 or Type-C PCB 810003. Without this unlock PCB, users cannot read ROM and Firmware modules due to the PCB chip lock. Please note: This PCB just guarantees users can remove the PCB chip lock and access to ROM and SA, doesn’t guarantee users can recover the data.

800066-SATA PCB: This PCB is one unlock data recovery PCB for USB PCB 800069 or Type-C PCB 800068. Without this unlock PCB, users cannot read ROM and Firmware modules due to the PCB chip lock. Please note: This PCB just guarantees users can remove the PCB chip lock and access to ROM and SA, doesn’t guarantee users can recover the data.

800077-SATA PCB: This PCB is one unlock data recovery PCB for the common locked 800077 SATA PCB. Without this unlock PCB, users cannot read ROM and Firmware modules due to the PCB chip lock. Please note: This PCB just guarantees users can remove the PCB chip lock and access to ROM and SA, doesn’t guarantee users can recover the data.

Helpful Links:

If you don’t want to solder ROM chip and read/write the ROM, users can read more on this innovative HDD ROM chip pin reader: HDD ROM Chip Pin Reader Set
