BGA Reballing Stencils and WD HDD PCB 8xxx Series MCU Reballing Stencils Package

Description

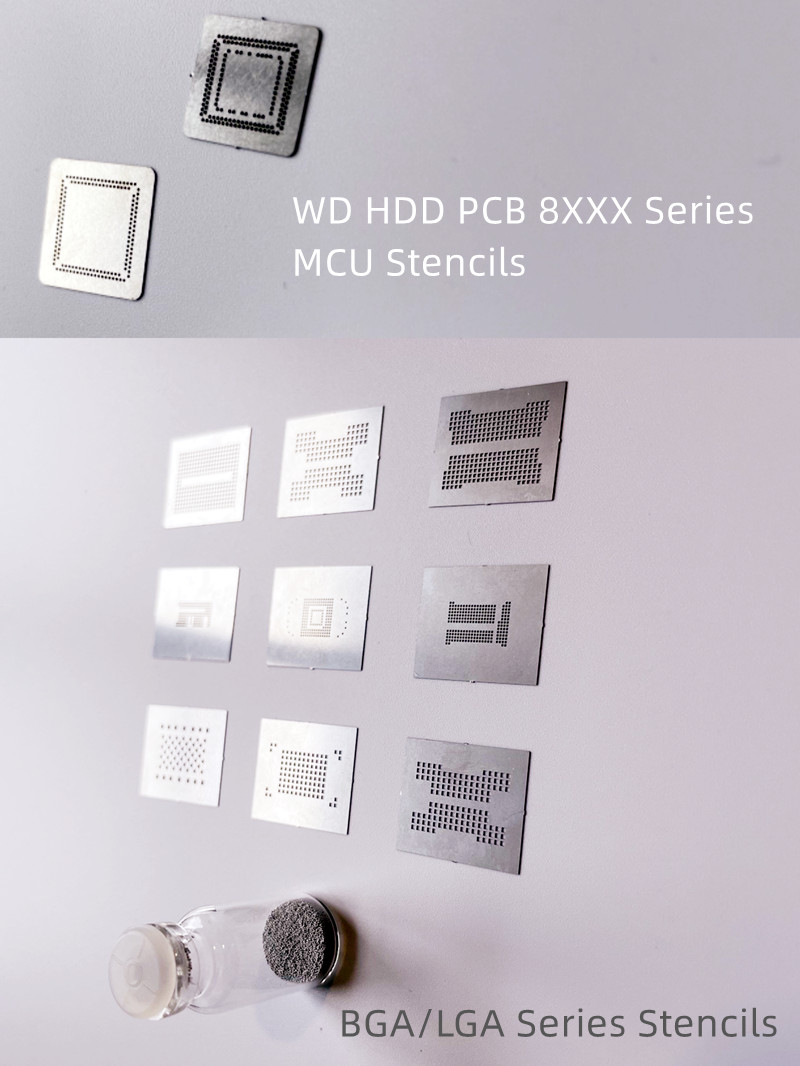

This stencil package is specially designed for the most common BGA chips and WD HDD PCB 8xxx series MCU reballing. This package has totally 11 stencils.

BGA chips contain the following types:
BGA272
BGA221
BGA132
BGA152
BGA169/153
BGA100
BGA316
BGA162
LGA60

WD HDD PCB 8xxx Series MCU ID: 88i1047-NDB2 and 88i1053-NXZ2

WD HDD PCBs with the same 88i1047-NDB2 Main Controller IC:

800022
800041

WD HDD PCBs with the same 88i1053-NXZ2 Main Controller IC:

800066
800067
800069
810030
810033
810035
810067

Promotion：Buy This Reballing Stencil Package and users get one bottle of Tin Beads as gift.

For WD SMR HDDs, they usually have firmware lock and SED V2 lock issue. To unlock the firmware area, users can use firmware unlock PCB. To fix the SED V2 issue, users can use the following methods:

1, Solder wires on original USB PCB;
2, Use HDD USB-SATA wiring PCB;
3, Use 2060-800041 Data Unlock SATA Connector;

Now we have another method: When the original PCB is physically damaged, users can only transfer the main controller IC to firmware unlock PCB to fix SED v2 issue.

Whenever users need to transfer the BGA chip above or 88i1047-NDB2 and 88i1053-NXZ2 main controller IC, this reballing stencil package is very helpful.

Users can watch the video on how to use our Reballing Stencil here
